Automatic Corrugated Box Folder Gluer Stitcher

Automatic corrugated carton box folder gluer sticher, cardboard box folding gluing stitching machine mainly used in food corrugated carton box, fruit carton box, industry carton box and other various corrugated packaging application.It’ with high speed folding gluing stitching production, PLC program system, intelligent controlling and order memory system application. Max machine speed is 200m/min.

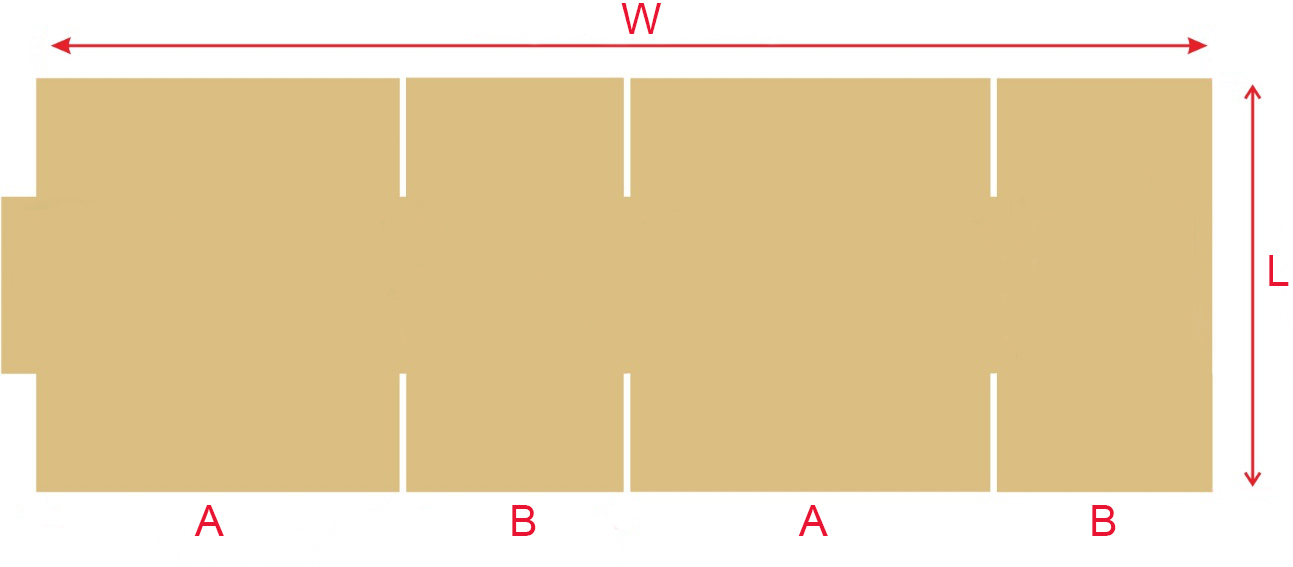

Model		JW1224B		JW1224B		JW1226B		JW1228B		JW1232B
Model		Max	Min	Max	Min	Max	Min	Max	Min	Max	Min
Folder Gluer	W	2400	420	2400	560	2600	560	2800	560	3200	560
	L	1200	170	1200	250	1200	250	1200	250	1200	250
	A	800	105	800	140	900	140	1000	140	1200	140
	B	800	80	600	80	650	80	700	80	800	80
	A+B	1200	210	1200	280	1300	280	1400	280	1600	280
Folder Gluer Stitcher	W	- - -	- - -	2400	800	2600	800	2800	800	3200	800
	L	- - -	- - -	1200	300	1200	300	1200	300	1200	800
	A	- - -	- - -	800	240	900	240	1000	240	1200	240
	B	- - -	- - -	600	160	650	160	700	160	800	160
	A+B	- - -	- - -	1200	400	1300	400	1600	400	1600	400


Model		JW1632B		JW1636B		JW2536B		JW2540B		JW2542B
Model		Max	Min	Max	Min	Max	Min	Max	Min	Max	Min
Folder Gluer	W	3200	600	3600	600	3600	600	4000	600	4200	600
	L	1600	300	1600	300	2500	300	2500	300	2500	300
	A	1200	150	1400	150	1400	150	1600	150	1700	150
	B	800	100	900	100	900	100	1000	100	1050	100
	A+B	1600	300	1800	300	1800	300	2000	300	2100	300
Folder Gluer Stitcher	W	3200	800	3600	800	3600	800	4000	800	4200	800
	L	1600	350	1600	350	2500	350	2500	350	2500	350
	A	1200	240	1400	240	1400	240	1600	240	1700	240
	B	800	160	900	160	900	160	1000	160	1050	160
	A+B	1600	400	1800	400	1800	400	2000	400	2100	400
